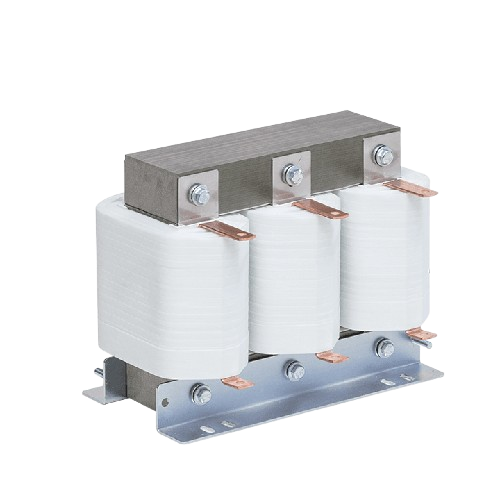

Low Voltage Unregulated Reactors
Advanced Power Factor Correction Solutions to Reduce Harmonics and Increase System Reliability.
Reactor What is Unregulated?
Unregulated reactors are inductive components that form series-regulated circuits with capacitors to minimize total harmonic distortion (THD) and prevent resonance in power factor correction systems.
Main Benefits
- Eliminates the risk of resonance
- Suppresses harmonic currents
- Increases capacitor life
- Reduces maintenance costs
- Ensures low losses and silent operation
Operating Data
| Rated Voltage | 230–۱۰۰۰ V | Rated Power | 3–۱۰۰۰ kVA |
| Rated frequency | ۵۰ / ۶۰ Hz | Unadjusted degree | ۵.۶۷%, ۷%–۱۴% |
| Inductance tolerance | ±۳% | Insulation (coil–core) | ۳ kV |
| Number of phases | Single-phase and three-phase | ||
Standards and Conformity
| Standards | EN 60076-6, EN 61558-2-20 | Compliance | CE certified |
Safety and Protection
| Protection degree | IP00, indoor installation | Class Insulation | F (155°C) |
| Improvement | Class H, with vacuum varnish | Cooling | Natural cooling, T40 |
| Thermal switch | 125°C (1NC, mid-phase) | ||
Design and Construction
| Type | Iron core, low loss steel sheet | Coil material | Aluminum foil or copper/aluminum wire |
| Structure | Dry type | Terminals | Terminal block, cable gland or copper busbar |
Key features
| Power Losses | Low Power Losses | Linearity | High Linearity |
| Protection | Overheat Protection | Lifespan | Long life |
| Terminals | High efficiency copper terminals | Performance | Silent operation |
